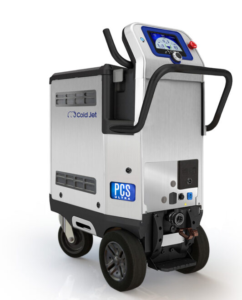

ULTRA Versatile Dry Ice Blaster
The Aero2 PCS ULTRA dry ice blasting machine is one of the most versatile on the market today. Built around our patented Particle Control System (PCS®), it gives operators complete control over particle size, so blasting parameters can be fine-tuned for almost any application.

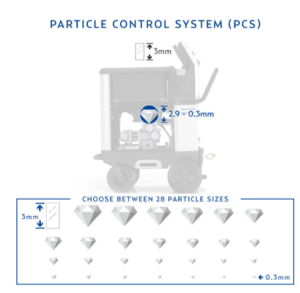

Operators can choose from 28 particle sizes between 0.3 mm and 3.0 mm, in increments of a tenth of a millimetre, to dial in the right blasting parameters for the job at hand.
Working on a delicate surface? Select a smaller particle size, say 0.4 mm, and blast at a lower pressure.
Need to shift a stubborn contaminant? Step up to a larger particle size, say 2.8 mm, and increase the blast pressure.
The Ultra Dry Ice Blasting machine has an 18 cm colour LCD screen with digital controls gives operators a clear, intuitive view of blasting parameters and machine settings, with everything adjustable on the fly.
The PCS ULTRA blasting machine also features programmable application recipes, letting operators set and save blasting parameters such as pressure, particle size and feed rate for repeat jobs. And with our patent-pending defrost cycle, moisture control and core cleaning happen automatically, helping keep the machine running for longer between services.
The PCS ULTRA is IoT-enabled through Cold Jet’s Industry 4.0 platform, Cold Jet CONNECT®. It puts remote monitoring and diagnostics, training videos, machine documentation and self-guided troubleshooting at the operator’s fingertips. For anything else, operators can connect directly with a Cold Jet service technician via chat, service ticket, or voice and video call.
The Cold Jet Difference:
ULTRA Versatile Dry Ice Blasting Machine
SureFlow Feeder System
Our patented SureFlow Feeder System combines thumpers, ramrods, vibrators and an insulated hopper to keep dry ice flowing consistently and evenly.
New Motors, Gearboxes and Cabling
Built around ultra-cold-rated motors that keep performing through long blasting cycles, paired with purpose-built control firmware and motor drivers for maximum efficiency.
Core Contamination Control
A new core contamination control system shields key components from dust and debris, cutting down on routine maintenance.
Patent-Pending Defrost Cycle
An industry-first defrost cycle, triggered automatically or manually, helps minimise downtime if internal components ice up or clog.
Intuitive Display
View and adjust blasting parameters and machine settings on an 18 cm colour LCD screen.
Programmable Application Recipes
Save and recall blast pressure, particle size and feed rate settings for each job, getting the most from consumables and reducing operator error.
Industry Changing Performance
A consistent, pulse-free blast stream.
Complete Control
No other machine on the market offers this level of precision and versatility.
Lower Noise Levels
Cleans effectively even at lower air and blast pressures.
Ergonomic
A lighter, more compact design with redesigned blast hoses for added flexibility and durability.
- ✓ Particle Control® system: 28 particle sizes (0.3 mm – 3.0 mm) for greater versatility
- ✓ 18 cm colour LCD display screen with digital controls
- ✓ Streamlined “straight-through” air system
- ✓ Programmable Application Recipes
- ✓ Advanced Aerodynamic Low Load Airlock Feeder
- ✓ Patented High-Efficiency Flow Initiation Regulator
- ✓ Patented Advanced Direct Drive Feeding System
- ✓ Patent-pending defrost cycle
- ✓ Core contamination control system
- ✓ New state-of-the-art motors, gearboxes and cabling
- ✓ Coated tool grade aluminium alloy, stainless steel and polymer frame
- ✓ Designed for mobility and manoeuvrability
- ✓ IoT Capability – Cold Jet CONNECT
- ✓ Integration and automation ready
✓ Particle Control® system…
| Dimensions | 98 cm x 48 cm x 114 cm |
| Weight | 120.6 kg |
| Hopper Capacity | 27 kg |
| Display | 18 cm colour LCD screen |
| Power Requirements | 110/220 VAC (50/60 Hz); Amps: 4.5 |
| Variable Feed Rate | 0 – 1.8 kg/min |
| Dry Ice Particle Size | Input: 3 mm | Output: 0.3 – 3.0 mm |
| Blast Pressure Range | 1.4 – 10 bar |
| Supply Pressure Range | 2.8 – 10 bar |
| Nozzle Air Consumption Range | 0.3 – 2.8 m³/min at 5.5 bar |
| Air Flow Path | 19 mm straight-through tubing |
| SureFlow | Thumper, ramrods, electric vibrator, “always-on” hopper agitation, isolated hopper |

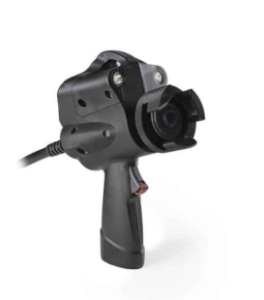

Applicators

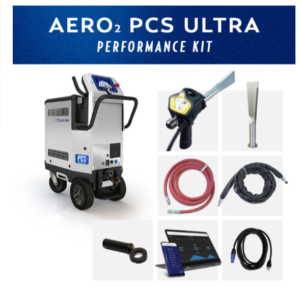

Performance Kit: 19 mm or 25 mm Performance Applicator

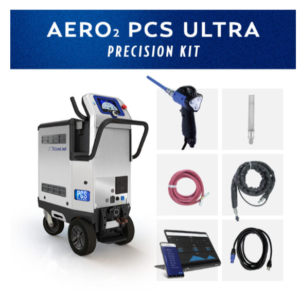

Precision Kit: 13 mm Precision Applicator

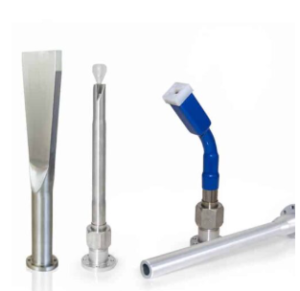

Nozzles
Performance Kit: choice of Performance Nozzle with nozzle handle
Precision Kit: choice of Precision Nozzle

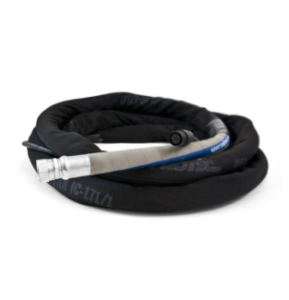

Hoses
25 mm Air Supply Hose
25 mm Hybrid-Flex Blast Hose
